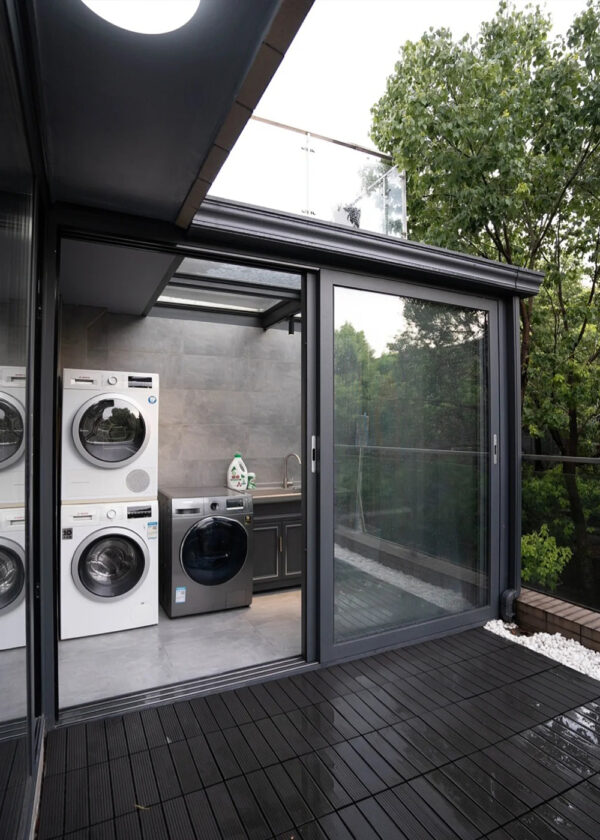

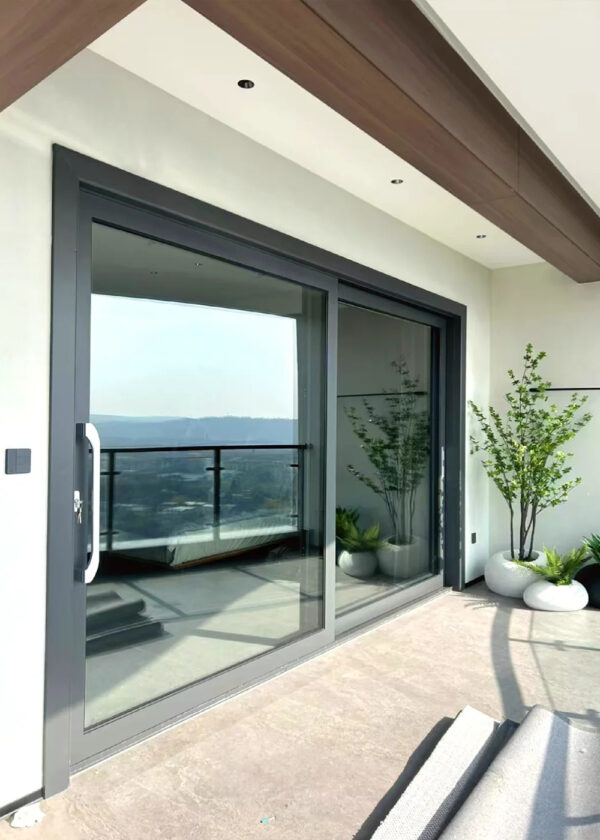

Aluminum Glass slidingDoor

GLASS

VDouble Glazed: 5mm+20A+5mm thick glass for enhanced sound insulation.VInert Gas Filling: lnert gas fills the gap, improving insulation and preventing fog.condensation,and frost.VDurable Spacer Bars: Aluminum spacer bars treated with fluorocarbon to preventyellowing or whitening.VBrand Recognition: Spacer bars are engraved with the DERCHl logo for higher brandvisibility

Connection Method

VStrong Joint Design: Full aluminum angle connection with plastic injection for strongand stable assembly.VEasy Installation: 90° screw connection for frame and track, equipped with waterproofgaskets for enhanced waterproofing.

Sliding class Door Hardware

VPremium Locking System: Pagoda brand lock made of full aluminum alloy with antisliding features and smooth operation.VWindproof and Anti-sway Roller: Top rollers with windproof and anti-sway features toprevent door movement in high windsVOuiet, Durable Rollers, Custom-desianed POK material four-wheel rollers that arequiet,smooth,and long-lasting.VSturdy Lock Base: Stainless steel lock base for strength, durability, and corrosion
resistance.

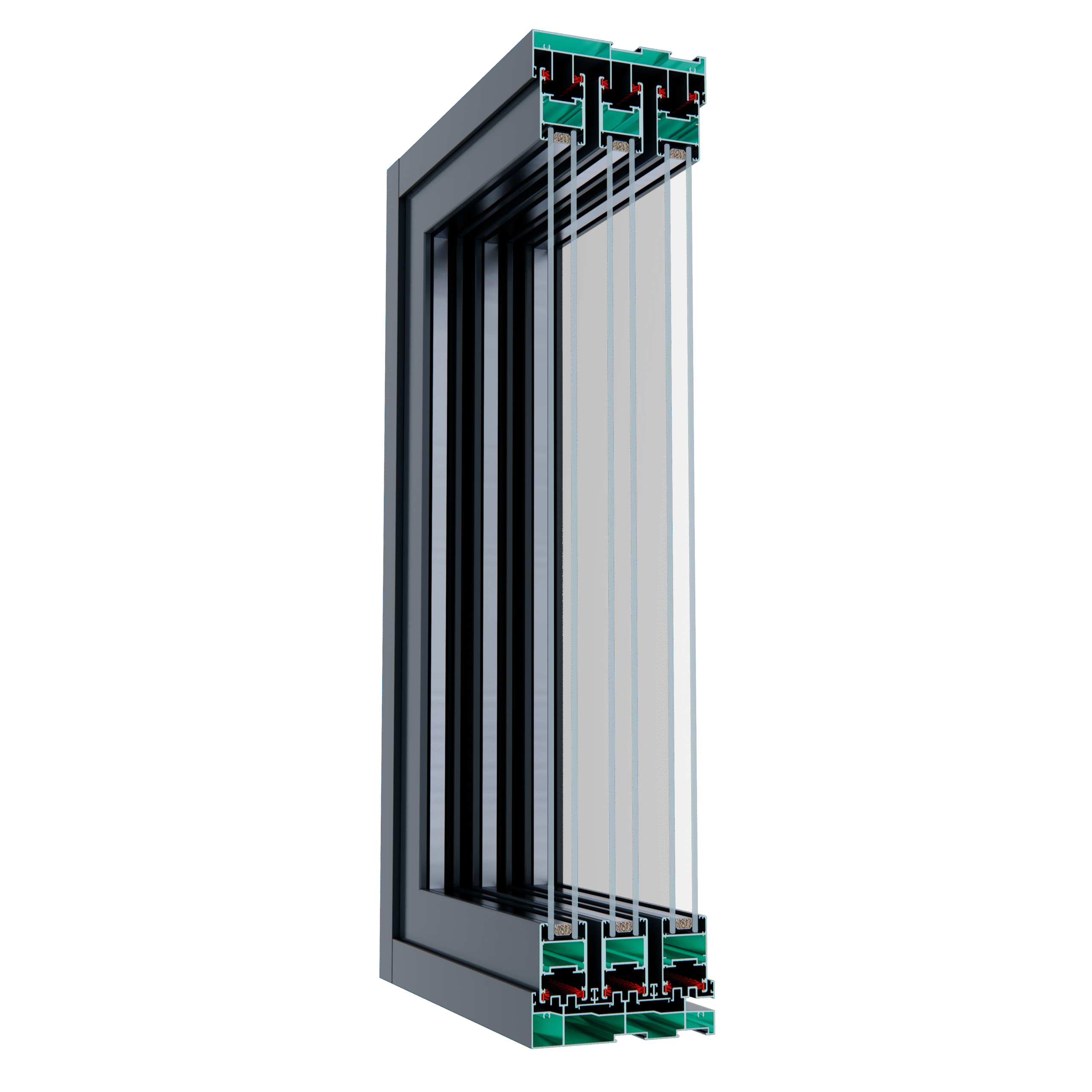

Structural Design

VEnhanced sealing: Sealing brush strips at the overlapping areas to improve weatherresistance.VEmbedded Sash Design: Door sashes are embedded for better sealing performanceVDeepened Track: 12mm overlapping upper track increases door stability and sealing.VHidden Drainage System: Lower track features a concealed drainage structure foraesthetic appeal
VImproved Drainage: Ground-level drain hole desian prevents water backflow andaccelerates drainage speed (National Patent).VWind Pressure Resistance: Multi-layered step design in the lower track reduces windpressure, improving airtightness and water resistance (National Patent).VSafe and Secure: Top rollers with anti-fall function to prevent doors from falling under
external impact.

Parameter	Details
Profile Wall Thickness	Frame:1.6mm, Sash: 2.0mm
Frame Width	Two-track: 105mm, Three-track: 157mm
Sash Dimensions	Visible width: 60mm, Sash Thickness: 40mm, Flat Panel Design
Opening Options	Conventional sliding, Four-sided fixed glass
Standard alass	5+20A+5mm (Fluorocarbon Insulated Aluminum spacer)
Hardware Finish	Silver, Black
Standard Lock	PAG Aluminum Alloy Hook Lock and Handle
Standard Roller	Custom-made silent Four-wheel Roller
Lock Base	304 stainless steel single Hook Lock
Insect Screen	304 Stainless Steel Mesh, 1l Mesh, 0.8mm Wire Thickness, Foldable Frame
Class Installation	Internal and external sealing process
Optional Frame Trims	70mm,100mm
Optional Upgrades	Magnetic control blinds (26A), Electric blinds (27A), Key-operated lock, Floating hardwareBuffer, Various Lower Track options
